ਐਕਸਚੇਂਜ ਪੈਲੇਟ ਸੀਐਨਸੀ ਮੈਟਲ ਫਾਈਬਰ ਲੇਜ਼ਰ ਪਾਈਪ ਟਿਊਬ ਕੱਟਣ ਵਾਲੀ ਮਸ਼ੀਨ ਦੀ ਕੀਮਤ

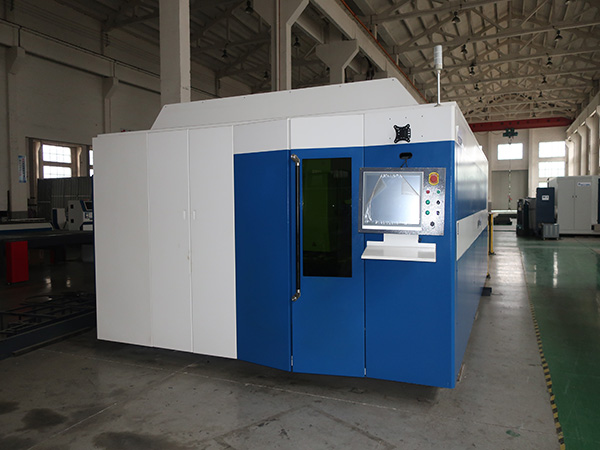

ਕਵਰ-ਨੱਥੀ ਐਕਸਚੇਂਜ ਫਾਲਟ ਸੀਐਨਸੀ ਮੈਟਲ ਫਾਈਬਰ ਲੇਜ਼ਰ ਪਾਈਪ ਟਿਊਬ ਕੱਟਣ ਵਾਲੀ ਮਸ਼ੀਨ ਦੀ ਕੀਮਤ

ਨਿਰਧਾਰਨ


Cutting Speed:35m/min, 0.5-0.8 m/min
ਗਰਾਫਿਕ ਫਾਰਮੈਟ ਸਮਰਥਿਤ: ਹੋਰ
ਐਪਲੀਕੇਸ਼ਨ: ਲੇਜ਼ਰ ਕੱਟਣਾ
ਹਾਲਤ: ਨਵੇਂ
Cutting Thickness:16 mm CS
ਸੀ ਐਨ ਸੀ ਜਾਂ ਨਹੀਂ: ਹਾਂ
ਕੂਲਿੰਗ ਮੋਡ: ਪਾਣੀ ਕੂਲਿੰਗ
ਕੰਟਰੋਲ ਸਾਫਟਵੇਅਰ: Cypcut
ਮੂਲ ਸਥਾਨ: ਐਨਹਾਈ, ਚੀਨ (ਮੇਨਲੈਂਡ)
ਸਰਟੀਫਿਕੇਸ਼ਨ: ਸੀ.ਈ., ਆਈ.ਓ.ਓ., ਐਸਜੀਐਸ
Cutting area(length x width):3000x1500 mm
CS cutting thickness:16 mm
SS cutting thickness:8 mm
SS Cutting Speed:0.5 - 0.9 m/min
X,Y axis position accuracy:≤±0.05 mm
X,Y axis repeatability:±0.02 mm
X axis stroke:3020 mm
Y axis stroke:1520 mm
Z axis stroke:100 mm
ਵਿਦੇਸ਼ ਤੋਂ ਸਰਵਿਸ ਮਸ਼ੀਨ ਲਈ ਉਪਲਬਧ ਸੇਵਾ ਤੋਂ ਬਾਅਦ ਸੇਵਾ ਦੇਣ ਵਾਲੀਆਂ ਸੇਵਾਵਾਂ

ਉਤਪਾਦ ਵੇਰਵਾ


Factory Directly Supply High Quality Sheet Metal Fiber Laser Cutting Machine From China
LFH SERIES
Sgantry Type Double Drive Fiber Laser Cutting Machine (Exchanged Table),The new closed design, double table fast exchange ,while processing edge cutting, fast,small slit, smooth section, easy operation,low energy consumption,suitable for large quantities of continuous processing, highlighting cutting competitive advantages.

Applicable Industries
Machinery and Equipment / Spare Parts Processing / Auto Parts / Aerospace / Oil Pipeline / Elevator Manufacturing / Sheet Metal Processing

                                   Specifications for ECO-FIBER-1530

Working Size and Range

1. Cutting area(length x width) 3000x1500 mm
2. X axis stroke 3020 mm
3. Y axis stroke 1520 mm
4. Z axis stroke 100 mm


Machine Accuracy

5. X,Y axis position ≤±0.05 mm accuracy
6. X,Y axis repeatability ±0.02 mm
7. Cutting-joint 0.1~0.3 mm As per plate thickness

Cutting Capacity

8. CS cutting thickness 16 mm
9. Cutting Speed 0.5-0.8 m/min
10. SS cutting thickness 8 mm 2000 W
11. Cutting Speed 0.5 - 0.9 m/min
12. Max.carrying weight of table 1200 Kg

ਮੁੱਖ ਫੀਚਰ


The basic principle of laser cutting are : the laser is focused on the material, the material is locally heated to above the meltlingpoint, then blow away the molten metal with a coaxial nozzle high- pressure gas or the metal vapor pressure, with the beam and the material is relatively linear movement so that holes are continuously formed very narrow width of the slit.

In the large format Laser Cutting Machine, the processing height is slightly different parts, so that the surface of the material deviation from local length , so that the spot size is different in different places, the power density os not the same, different quality laser cutting position is inconsistent not reach the laser Cutting Quality requirement.

Cutting Head using servo system ensure highly consistent cutting head and cutting material, thus ensuring the cut.
