ਫੈਬਰ ਲੇਜ਼ਰ ਮੈਟਲ ਕੱਟਣ ਵਾਲੀ ਮਸ਼ੀਨ ਜਿਸ ਨਾਲ ਸੁਰੱਖਿਆ ਦੀਵਾਰ ਅਤੇ ਫਾਲਟ ਚੇਜ਼ਰ ਸ਼ਾਮਲ ਹੈ

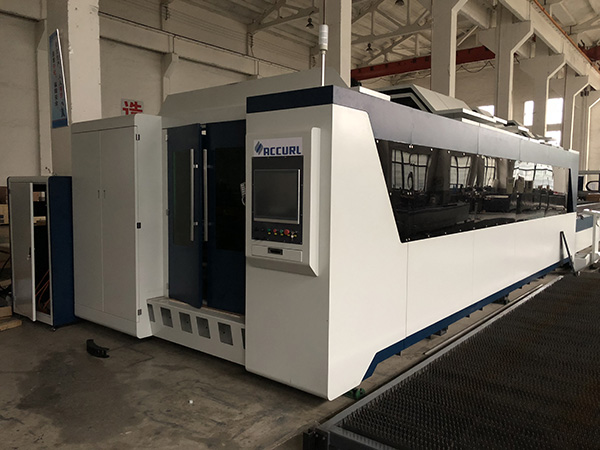

3000W ਫਾਈਬਰ ਲੇਜ਼ਰ ਮੈਟਲ ਕਟਿੰਗਿੰਗ ਮਸ਼ੀਨ ਪ੍ਰੋਟੈਕਟਿਵ ਐਕਵੇਰਿਅਰ ਅਤੇ ਪੈਲੇਟ ਚੇਨਜ਼ਰ ਨਾਲ

ਨਿਰਧਾਰਨ


Cutting Speed:8m/min(Depending on material)
ਗਰਾਫਿਕ ਫਾਰਮੈਟ ਸਮਰਥਿਤ: ਏਆਈ, ਡੀਐਕਸਐਫ, ਪੀਟੀਟੀ
ਐਪਲੀਕੇਸ਼ਨ: ਲੇਜ਼ਰ ਕੱਟਣਾ
ਹਾਲਤ: ਨਵੇਂ
Cutting Thickness:0.2-6mm(500w)/0.2-8mm(750w)depending on material
ਸੀ ਐਨ ਸੀ ਜਾਂ ਨਹੀਂ: ਹਾਂ
ਕੂਲਿੰਗ ਮੋਡ: ਪਾਣੀ ਕੂਲਿੰਗ
Control Software:perfect professional laser cutting software
Place of OriginAnhui, China (Mainland)
Model Number:1540
ਸਰਟੀਫਿਕੇਸ਼ਨ: ਸੀ.ਈ., ਆਈ
Product name:1540 servo motor Schneider Electric metal laser cutting machine
working power:380V/50Hz/50A(500W)or 380V/50Hz/60(750w)
Keyword:cutting machine
Model:MFJG4015-500/750
size:5370*24800*1400mm
function:Cutting metal materials
Pulse repeated frequence:0-300HZ
ਵਿਕਰੀ ਤੋਂ ਬਾਅਦ ਸੇਵਾ ਪ੍ਰਦਾਨ ਕੀਤੀ ਗਈ: ਵਿਦੇਸ਼ੀ ਸੇਵਾ ਮਸ਼ੀਨਾਂ ਲਈ ਉਪਲਬਧ ਇੰਜੀਨੀਅਰ

ਉਤਪਾਦ ਵੇਰਵਾ


product introduction

ECO-FIBER-1530 type metal laser cutting machine adopts high power solid laser technology, which has function and high compatibility CNC software and superior performance CNC power system, which has following advantages:
1, Adopt advanced Russian solid laser core technology, good optical model, stable performance.
2, High efficiency of photoelectric conversion, which is twice that of domestic laser source.
3, Low heat of laser source, only need 5P water-cooling machine, saving the electricity.
4, Gantry flying light path design , light operation, which can save about 40% electricity more than laser lines.
5, Achieve a perfect cutting effect by only blowing compressed air during processing, which can largely reduce costs of auxiliary gas such as Oxygen, Nitrogen about tens of thousands RMB.
6, Equipped with centralized lubrication system , made the machine tool working more stable.

Technical specification


model
ECO-FIBER-1530-500/750
ECO-FIBER-1530-500/750
ECO-FIBER-1530-500/750
medium of laser
ECO-FIBER
cutting area(mm)
2500mm*1250mm
3000mm * 1500 ਮਿਲੀਮੀਟਰ
4000mm*1500mm
max cutting speed(m/min)
8m/min( Depending on material)
cooling way
water cooling
pulse repeated frequence
0-300HZ
ਮਿੰਟ ਲਾਈਨ ਦੀ ਚੌੜਾਈ
0.12mm(500W)/0.15mm(750W)
cutting thickness
0.2-6mm(500W)/0.2-8mm(750W) (Depending on material)
laser wavelength
1064 n.ਐਮ.
woring power
380V/50HZ/50A(500W)/380V/50HZ/60A(750W)
continuous working time
24hours
weight
about 2500kg
about 3000kg
about 3500kg
size
3770mm*2280mm*1400mm
4270mm*2480mm*1400mm
5370mm*2480mm*1400mm

Main Characters:


1. Excellent quality of light beam: smaller focus facula, more fine cutting line, higher working efficiency, better processing quality.
2. ਬਹੁਤ ਕੱਟਣ ਦੀ ਗਤੀ: ਇਕੋ ਦੀ ਸ਼ਕਤੀ ਦੇ ਤਹਿਤ ਕੋ 2 ਲੇਜ਼ਰ ਕਟਿੰਗ ਮਸ਼ੀਨ ਦੁਆਰਾ 2 ਵਾਰ.
3. Very high stability: adopt world top imported fiber laser source , stable performance, the using life of key parts can reach up to 100 thousands hours.
4. Very high efficiency of photoelectric conversion: of which fiber laser cutting machine is 3 times by co2 laser cutting machine, saving the energy and protecting environment
5. Very low using cost: power consumption of whole machine is only 20-30% of co2 laser cutting machine under same power.
6. Very low maintenance cost: no working gas for laser source; fiber transmission, no need the reflecting lens; can save large maintenance cost.
7. Convenient product operation and maintenance: fiber transmission, no need to adjust the optical path.
8. Very strong soft optical effects: compact volume and structure, which is easy for soft processing requirement.
9. The machine tool adopts gantry double driving structure, high damping machine tool bed, good rigid, which can suffer very high speed and acceleration.
10. This model adopts imported AC servo system driver and imported transmission system, the moving structure of machine tool adopts imported gear and rack transmission, linear guide track for guiding, ensuring the high speed,high precision and high reliability of equipment.
11. Rack and guide adopt fullly enclosed protective device, which prevents oil free friction movement and dust pollution, enhances using life of transmission parts and ensures the precision of machine tool movement.
12. Professional laser cutting machine, cnc control system, computer operation, can ensure the cutting quality, and more convenient for cutting work.
